vw80000 E-01長時間過電壓應用：

可編程直流電源SYSKON P800-60（電壓0-60V；電流0-40A；Z大功率800W）用于生成標準大眾vw80000-2017(原LV124)第7章節規定的波形

E-01長時間過電壓

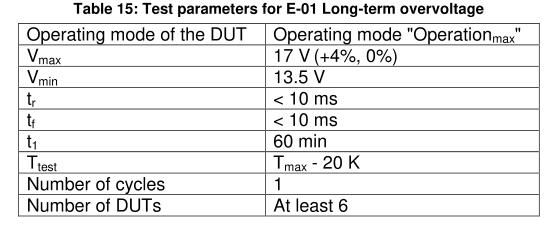

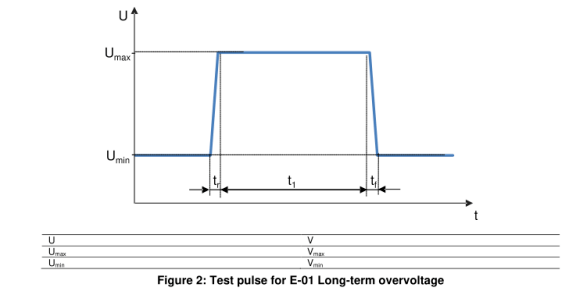

脈沖規格

序列功能設定

該電源的序列功能用于生成所需的測試脈沖信號，可以使用我們的軟件GM SYSKON SFP來進行設定。

通過對下圖中1-65進行參數設定來得到需要的輸出信號波形

這些設定好的各序列參數可以保存為T(mén)XT文本格式（ANSI碼），如下這樣：

//STORE storage#, voltage[V], current[A], time[sec], function

STORE 1, 13.5, 20, 5, NF

STORE 2, 17, 20, 0.005, RU

STORE 3, 17, 20, 60, NF

STORE 4, 17, 20, 60, NF

STORE 5, 17, 20, 60, NF

STORE 6, 17, 20, 60, NF

STORE 7, 17, 20, 60, NF

STORE 8, 17, 20, 60, NF

STORE 9, 17, 20, 60, NF

STORE 10, 17, 20, 60, NF

STORE 11, 17, 20, 60, NF

STORE 12, 17, 20, 60, NF

STORE 13, 17, 20, 60, NF

STORE 14, 17, 20, 60, NF

STORE 15, 17, 20, 60, NF

STORE 16, 17, 20, 60, NF

STORE 17, 17, 20, 60, NF

STORE 18, 17, 20, 60, NF

STORE 19, 17, 20, 60, NF

STORE 20, 17, 20, 60, NF

STORE 21, 17, 20, 60, NF

STORE 22, 17, 20, 60, NF

STORE 23, 17, 20, 60, NF

STORE 24, 17, 20, 60, NF

STORE 25, 17, 20, 60, NF

STORE 26, 17, 20, 60, NF

STORE 27, 17, 20, 60, NF

STORE 28, 17, 20, 60, NF

STORE 29, 17, 20, 60, NF

STORE 30, 17, 20, 60, NF

STORE 31, 17, 20, 60, NF

STORE 32, 17, 20, 60, NF

STORE 33, 17, 20, 60, NF

STORE 34, 17, 20, 60, NF

STORE 35, 17, 20, 60, NF

STORE 36, 17, 20, 60, NF

STORE 37, 17, 20, 60, NF

STORE 38, 17, 20, 60, NF

STORE 39, 17, 20, 60, NF

STORE 40, 17, 20, 60, NF

STORE 41, 17, 20, 60, NF

STORE 42, 17, 20, 60, NF

STORE 43, 17, 20, 60, NF

STORE 44, 17, 20, 60, NF

STORE 45, 17, 20, 60, NF

STORE 46, 17, 20, 60, NF

STORE 47, 17, 20, 60, NF

STORE 48, 17, 20, 60, NF

STORE 49, 17, 20, 60, NF

STORE 50, 17, 20, 60, NF

STORE 51, 17, 20, 60, NF

STORE 52, 17, 20, 60, NF

STORE 53, 17, 20, 60, NF

STORE 54, 17, 20, 60, NF

STORE 55, 17, 20, 60, NF

STORE 56, 17, 20, 60, NF

STORE 57, 17, 20, 60, NF

STORE 58, 17, 20, 60, NF

STORE 59, 17, 20, 60, NF

STORE 60, 17, 20, 60, NF

STORE 61, 17, 20, 60, NF

STORE 62, 17, 20, 60, NF

STORE 63, 13.5, 20, 0.01, RU

STORE 64, 13.5, 20, 5, NF

STORE 65, 0, 0, 0, CLR

這些文本可以進行編輯并保存，而后在軟件的TASK中打開，就可以將設置加載到電源設備中，得出相應波形。

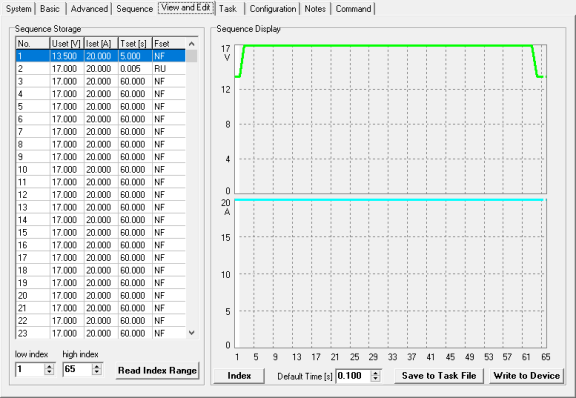

序列的參數設定如下圖：
